Step by Step of Adding a Node to the 11g R1 RAC cluster on Linux:

By Bhavin Hingu

bhavin@oracledba.org



<<HOME>>



This document explains the step by step process of adding a Node to the 11g R1 RAC Cluster. In this process, I am going to add a single node (node2-pub) to single node RAC cluster online without affecting the availability of the Existing RAC Database.



Existing RAC Setup:



Node 1:

Public: node1-pub

Private: node1-prv

Virtual: node1-vip

ORACLE_HOMES (Local on Each Node):

CRS_HOME: /u01/app/crs

DB_HOME: /u01/app/oracle/product/11g/db_2

ASM_HOME: /u01/app/asm/product/11gr1

Database / ASM:

DB Name: test

DB Instances: test1 on node1-pub

ASM Instances: +ASM1 on node1-pub.



New Node:



Public: node2-pub (192.168.10.22)

Private: node2-prv (192.168.0.22)

Virtual: node2-vip (192.168.10.222)

Nas Network: node2-nas (192.168.1.22)





Assumptions:



         MAXINSTANCES in current controlfile is set to atleast 2.

         New node is physically connected to the Cluster.

         Same Linux OS version as node 1 is installed on the new node.

Tasks List (to be executed in Order):



Provision the New Node (node2-pub) same way as existing Node (node1-pub)

Install CRS on New Node

Install 11g R1 RAC for ASM_HOME on node2-pub

Add listeners on node2-pub

Install 11g R1 RAC for ORACLE_HOME on node2-pub

Add ASM Instance +ASM2 on node2pub manually

Add DB Instance test2 on node2-pub manually.





Provision the New Node (node2-pub):



Packages:



Oracle 11g R1 on CentOS EL 4 Update 5 requires below extra packages to be installed with the version same or higher than listed below.



binutils-2.15.92.0.2-18

compat-libstdc++-33.2.3-47.3

elfutils-libelf-0.97-5

elfutils-libelf-devel-0.97.5

glibc-2.3.9.4-2.19

glibc-common-2.3.9.4-2.19

glibc-devel-2.3.9.4-2.19

gcc-3.4.5-2

gcc-c++-3.4.5-2

libaio-devel-0.3.105-2

libaio-0.3.105-2

libgcc-3.4.5

libstdc++-3.4.5-2

libstdc++-devel-3.4.5-2

make-3.80-5

sysstat-5.0.5

unixODBC-2.2.11

unixODBC-devel-2.2.11

iscsi-initiator-utils-4.0.3.0-5



Configuring Public and Private Networks:



Each New node in the cluster must have 3 network adapter (eth0, eth1and eth2) one for the public, second one for the private network interface (inter-node communication, interconnect) and third one for the Network Storage System (Private).



Follow the below steps to configure these networks:



(1)    Keep the hostname same way as existing node using below command:



hostname node2-pub.hingu.net



(2)    Edit the /etc/hosts file as shown below:



# Do not remove the following line, or various programs

# that requires network functionality will fail.

127.0.0.1 localhost.localdomain localhost

## Public Node names

192.168.10.11 node1-pub.hingu.net node1-pub

192.168.10.22 node2-pub.hingu.net node2-pub

## Private Network (Interconnect)

192.168.0.11 node1-prv node1-prv

192.168.0.22 node2-prv node2-prv

## Private Network (Network storage)

192.168.1.11 node1-nas node1-nas

192.168.1.22 node2-nas node2-nas

192.168.1.33 nas-server nas-server

## Virtual IPs

192.168.10.111 node1-vip.hingu.net node1-vip

192.168.10.222 node2-vip.hingu.net node2-vip



(3)    Edit the /etc/sysconfig/network-scripts/ifcfg-eth0 as shown below:



DEVICE=eth0

BOOTPROTO=none

IPADDR=192.168.10.22

HWADDR=00:06:5B:AE:AE:7F

ONBOOT=yes

TYPE=Ethernet



(4)    Edit the /etc/sysconfig/network-scripts/ifcfg-eth1 as shown below: -<-- For Cluster interconnects



DEVICE=eth1

BOOTPROTO=static

HWADDR=00:13:46:6A:FC:6D

ONBOOT=yes

IPADDR=192.168.0.22

NETMASK=255.255.255.0

TYPE=Ethernet



(5)    Edit the /etc/sysconfig/network-scripts/ifcfg-eth2 on RAC Nodes as shown below: <-- For iSCSI SAN Storage Network



DEVICE=eth2

ONBOOT=yes

BOOTPROTO=static

IPADDR=192.168.1.22

NETMASK=255.255.255.0

HWADDR=00:18:F8:0F:0D:C1



(6)    Edit the /etc/sysconfig/network file with the below contents:



NETWORKING=yes

HOSTNAME=node2-pub.hingu.net



(7)    Restart the network service:



Service network restart



Memory and Swap Space:



Oracle 11g R1 RAC requires to have 1GB of RAM available on each node.



Kernel parameters:



Oracle recommends that you set shared memory segment attributes as well as semaphores to the following values. If not set, database instance creation may fail. I added the following lines to /etc/sysctl.conf file. Every OS process needs semaphore where it waits on for the resources.



NOTE: If the current value for any parameter is higher than the value listed in this table, then do not change the value of that parameter.

Below commands gets us the value of the current kernel parameters set in the system.



/sbin/sysctl -a | grep sem -- for semmsl, semmns, semopm, semmni

/sbin/sysctl -a | grep shm -- for shmall, shmmax, shmmni

/sbin/sysctl -a | grep file-max

/sbin/sysctl -a | grep ip_local_port_range

/sbin/sysctl -a | grep rmem_default



Please add/change the appropriate variables value in the /etc/sysctl.conf file as shown below.



# Kernel sysctl configuration file for Red Hat Linux

#

# For binary values, 0 is disabled, 1 is enabled. See sysctl(8) and

# sysctl.conf(5) for more details.

# Controls IP packet forwarding

net.ipv4.ip_forward = 0

# Controls source route verification

net.ipv4.conf.default.rp_filter = 1

# Do not accept source routing

net.ipv4.conf.default.accept_source_route = 0

# Controls the System Request debugging functionality of the kernel

kernel.sysrq = 0

# Controls whether core dumps will append the PID to the core filename.

# Useful for debugging multi-threaded applications.

kernel.core_uses_pid = 1

# Extra parameters For 11g RAC installation

kernel.shmmax = 2147483648

kernel.shmmni = 4096

kernel.shmall = 2097152

kernel.sem = 250 32000 100 128

fs.file-max = 6553600

net.ipv4.ip_local_port_range = 1024 65000

net.core.rmem_default = 4194304

net.core.wmem_default = 262144

net.core.wmem_max= 262144

net.core.rmem_max = 4194304

After adding these lines to /etc/sysctl.conf, please run the below command as root to make them enabled.



sysctl -p



Creating oracle OS User Account:



Get the value of user id and group id of oracle user on existing node by executing the id command and provide the same IDs to the below set of command to create oracle user and groups on new node.



groupadd -g 900 dba

groupadd -g 901 oinstall

useradd -u 900 -g oinstall -G dba oracle

passwd oracle

id oracle



Creating Oracle Software Directories:



Create the similar directories with ownership and permissions for all the ORACLE_HOMEs on the new node as existing node.



mkdir -p /u01/app/crs

mkdir -p /u01/app/asm

mkdir -p /u01/app/oracle

mkdir -p /u02/ocfs2

chown -R oracle:oinstall /u01

chown -R oracle:oinstall /u02

chmod -R 775 /u01/app/oracle

chmod -R 775 /u01



Setting Shell Limits for the Oracle User:



Add the following lines to the /etc/security/limits.conf file:



oracle soft nproc 2047

oracle hard nproc 16384

oracle soft nofile 1024

oracle hard nofile 65536



Add or edit the following line in the /etc/pam.d/login file, if it does not already exist:



session required /lib/security/pam_limits.so



For the Bourne, Bash, or Korn shell, add the following lines to the /etc/profile:



if [ $USER = "oracle" ]; then

if [ $SHELL = "/bin/ksh" ]; then

ulimit -p 16384

ulimit -n 65536

else

ulimit -u 16384 -n 65536

fi

fi



For the C shell (csh or tcsh), add the following lines to the /etc/csh.login.



if ( $USER == "oracle" ) then

limit maxproc 16384

limit descriptors 65536

endif



Enable SSH oracle user Equivalency on Both the Cluster Nodes:



On New Node:



su - oracle

mkdir ~/.ssh

chmod 700 ~/.ssh



Generate the RSA and DSA keys:



/usr/bin/ssh-keygen -t rsa

/usr/bin/ssh-keygen -t dsa



On node1:



cd ~/.ssh

scp config node2-pub:.ssh

scp authorized_keys node2:.ssh/



On node2:



(a)    Add the Keys generated above to the Authorized_keys file.



cd ~/.ssh

cat id_rsa.pub >> authorized_keys

cat id_dsa.pub >> authorized_keys



(b)   Send this file to node1.



scp authorized_keys node1-pub:.ssh/

chmod 600 authorized_keys



On both the Nodes:



chmod 600 ~/.ssh/authorized_keys



ssh node1-pub date

ssh node2-pub date

ssh node1.hingu.net date

ssh node2.hingu.net date

ssh node3.hingu.net date

ssh node1-prv date

ssh node2-prv date



Entered 'yes' and continued when prompted



If you get then below error message when try to connect to remote node, please make sure that the firewall is disabled on the remote node.



[root@node2-pub root]# telnet node1-prv

Trying 192.168.203.1...

telnet: Unable to connect to remote host: No route to host





Configuring System for Shared Disk Storage Device (iSCSI based IP SAN):



SAN side (Openfiler):



         Add new node node2-pub to their client list.

         Allow shared access to all the volumes that node1-pub has access on and are used for this RAC setup.



Client Side (node2-pub):



(1)    Make sure that SELinux and firewall has been disabled on all the RAC nodes. If not, then disable by "Administration Sections" --> "system settings" -> "security Level"



(2)    Start the iscsi service.



service iscsi start



(3)    Edit the /etc/iscsi.conf and assign the address of the iscsi target to the below parameter:



DiscoveryAddress=192.168.1.33 # <-- This is the address of the nas-server



(4)    Reboot the new node and run iscsi-ls command to see if the luns are discovered.



[root@node2-pub rpms]# iscsi-ls

*******************************************************************************

SFNet iSCSI Driver Version ...4:0.1.11-4(15-Jan-2007)

*******************************************************************************

TARGET NAME : iqn.2006-01.com.openfiler:rac11g.ocfs-dsk

TARGET ALIAS :

HOST ID : 0

BUS ID : 0

TARGET ID : 0

TARGET ADDRESS : 192.168.1.33:3260,1

SESSION STATUS : ESTABLISHED AT Sun Sep 2 18:49:57 CDT 2007

SESSION ID : ISID 00023d000001 TSIH 1200

*******************************************************************************

TARGET NAME : iqn.2006-01.com.openfiler:rac11g.asm-dsk4

TARGET ALIAS :

HOST ID : 1

BUS ID : 0

TARGET ID : 0

TARGET ADDRESS : 192.168.1.33:3260,1

SESSION STATUS : ESTABLISHED AT Sun Sep 2 18:49:57 CDT 2007

SESSION ID : ISID 00023d000001 TSIH 1000

*******************************************************************************

TARGET NAME : iqn.2006-01.com.openfiler:rac11g.asm-dsk3

TARGET ALIAS :

HOST ID : 2

BUS ID : 0

TARGET ID : 0

TARGET ADDRESS : 192.168.1.33:3260,1

SESSION STATUS : ESTABLISHED AT Sun Sep 2 18:49:57 CDT 2007

SESSION ID : ISID 00023d000001 TSIH 1100

*******************************************************************************

TARGET NAME : iqn.2006-01.com.openfiler:rac11g.asm-dsk2

TARGET ALIAS :

HOST ID : 3

BUS ID : 0

TARGET ID : 0

TARGET ADDRESS : 192.168.1.33:3260,1

SESSION STATUS : ESTABLISHED AT Sun Sep 2 18:49:57 CDT 2007

SESSION ID : ISID 00023d000001 TSIH 1300

*******************************************************************************

TARGET NAME : iqn.2006-01.com.openfiler:rac11g.asm-dsk1

TARGET ALIAS :

HOST ID : 4

BUS ID : 0

TARGET ID : 0

TARGET ADDRESS : 192.168.1.33:3260,1

SESSION STATUS : ESTABLISHED AT Sun Sep 2 18:49:58 CDT 2007

SESSION ID : ISID 00023d000001 TSIH 1400

*******************************************************************************

[root@node2-pub rpms]#



(5)    Map the Volumes on the iscsi-target (nas-server) to the Disks discovered on the local RAC nodes.



Host ID

Target ID

Discovered as

0

iqn.2006-01.com.openfiler:rac11g.ocfs-dsk



1

iqn.2006-01.com.openfiler:rac11g.asm-dsk4



2

iqn.2006-01.com.openfiler:rac11g.asm-dsk3



3

iqn.2006-01.com.openfiler:rac11g.asm-dsk2



4

iqn.2006-01.com.openfiler:rac11g.asm-dsk1





Now, run the below command to find out the "Attached" devices to the Host IDs. The scsi Id in this output maps to the Host ID on the "iscsi-ls" output.



[root@node2-pub rpms]# dmesg | grep Attached

Attached scsi disk sda at scsi0, channel 0, id 0, lun 0

Attached scsi disk sdb at scsi1, channel 0, id 0, lun 0

Attached scsi disk sdc at scsi2, channel 0, id 0, lun 0

Attached scsi disk sdd at scsi3, channel 0, id 0, lun 0

Attached scsi disk sde at scsi4, channel 0, id 0, lun 0



In first line, scsi0 (Host Id 0) has device "sda" attached to it. So, By filling the above table with this information gives the mapping of discovered Disks at client to its actual Volumes on the iscsi-target.



Host ID

Target ID

Discovered as

0

iqn.2006-01.com.openfiler:rac11g.ocfs-dsk

sda

1

iqn.2006-01.com.openfiler:rac11g.asm-dsk4

sdb

2

iqn.2006-01.com.openfiler:rac11g.asm-dsk3

sdc

3

iqn.2006-01.com.openfiler:rac11g.asm-dsk2

sdd

4

iqn.2006-01.com.openfiler:rac11g.asm-dsk1

sde





No need to partition the Shared Disks on new Node. After successful discovery of the Shared Volumes, as shown above, all the existing partitions on these volumes will be available on node2-pub node. Verify with fdisk l.



Make Device name persistent on new node (node2-pub):



(1)    Download the latest rpm of devlabel from Dell's website:

(2)    Install it on the new node:



[root@node1-pub Desktop]# rpm -ivh devlabel-0.48.01-1.i386.rpm

warning: devlabel-0.48.01-1.i386.rpm: V3 DSA signature: NOKEY, key ID 23b66a9d

Preparing... ########################################### [100%]

1:devlabel ########################################### [100%]

[root@node1-pub Desktop]#



(3)    Create the SYMLINK using the devlabel (All the RAC nodes):



(A)   Get the Host ID and the Devices attached to that ID by below command:



[root@node1-pub ~]# dmesg | grep Attached

Attached scsi disk sda at scsi5, channel 0, id 0, lun 0

Attached scsi disk sdb at scsi8, channel 0, id 0, lun 0

Attached scsi disk sdc at scsi6, channel 0, id 0, lun 0

Attached scsi disk sdd at scsi9, channel 0, id 0, lun 0

Attached scsi disk sde at scsi7, channel 0, id 0, lun 0



(B)   Get the Target Name associated to each Host ID by using iscsi-ls command:



(C)   Create SYMLINK using below command:



[root@node1-pub ~]# devlabel add -d /dev/sdc1 -s /dev/ocfs2

SYMLINK: /dev/ocfs2 -> /dev/sde1

Added /dev/ocfs2 to /etc/sysconfig/devlabel

[root@node1-pub ~]#

[root@node1-pub ~]# devlabel add -d /dev/sde1 -s /dev/asmdsk4

SYMLINK: /dev/asmdsk4 -> /dev/sde1

Added /dev/asmdsk4 to /etc/sysconfig/devlabel

[root@node1-pub ~]#

[root@node1-pub ~]# devlabel add -d /dev/sde1 -s /dev/asmdsk3

SYMLINK: /dev/asmdsk3 -> /dev/sde1

Added /dev/asmdsk3 to /etc/sysconfig/devlabel

[root@node1-pub ~]#

[root@node1-pub ~]# devlabel add -d /dev/sdb1 -s /dev/asmdsk2

SYMLINK: /dev/asmdsk2 -> /dev/sdb1

[root@node1-pub ~]#

Added /dev/asmdsk2 to /etc/sysconfig/devlabel

[root@node1-pub ~]# devlabel add -d /dev/sdd1 -s /dev/asmdsk1

SYMLINK: /dev/asmdsk1 -> /dev/sdd1

[root@node1-pub ~]#

Added /dev/asmdsk1 to /etc/sysconfig/devlabel

[root@node1-pub ~]#



(D)   Confirm that the symlinks are associated with the UUID of each physical device.



[root@node1-pub ~]# cat /etc/sysconfig/devlabel

# devlabel configuration file

#

# This file should generally not be edited by hand.

# Instead, use the /sbin/devlabel program to make changes.

# devlabel by Gary Lerhaupt <gary_lerhaupt@dell.com>

#

# format: <SYMLINK> <DEVICE> <UUID>

# or format: <RAWDEVICE> <DEVICE> <UUID>



/dev/ocfs2 /dev/sda1 S83.1:4f70656e66696c000000000005000000b92700000e000000OpenfileVirtualdisksector63-157533389

/dev/asmdsk4 /dev/sdc1 S83.1:4f70656e66696c000000000004000000a52700000e000000OpenfileVirtualdisksector63-204796619

/dev/asmdsk3 /dev/sde1 S83.1:4f70656e66696c000000000003000000912700000e000000OpenfileVirtualdisksector63-204796619

/dev/asmdsk2 /dev/sdb1 S83.1:4f70656e66696c0000000000020000007d2700000e000000OpenfileVirtualdisksector63-204796619

/dev/asmdsk1 /dev/sdd1 S83.1:4f70656e66696c000000000001000000672700000e000000OpenfileVirtualdisksector63-204796619

[root@node1-pub ~]#



(E)    Mount the ocfs2 devices under the appropriate mount point and update the /etc/fstab (in my case it is /u02/ocfs2):



[root@node1-pub ~]# mount -t ocfs2 -o datavolume,nointr /dev/ocfs2 /u02/ocfs2

[root@node1-pub ~]# vi /etc/fstab



[root@node1-pub ~]# cat /etc/fstab

# This file is edited by fstab-sync - see 'man fstab-sync' for details

/dev/VolGroup00/LogVol00 / ext3 defaults 1 1

LABEL=/boot /boot ext3 defaults 1 2

none /dev/pts devpts gid=5,mode=620 0 0

none /dev/shm tmpfs defaults 0 0

none /proc proc defaults 0 0

none /sys sysfs defaults 0 0

/dev/VolGroup00/LogVol01 swap swap defaults 0 0



## OCFS2 mountpoint



/dev/ocfs2 /u02/ocfs2 ocfs2 _netdev,datavolume,nointr 0 0

/dev/hdc /media/cdrom auto pamconsole,exec,noauto,managed 0 0

/dev/fd0 /media/floppy auto pamconsole,exec,noauto,managed 0 0



(F)    Update the /etc/rc.local files

Copy the existing /etc/rc.local file from node1-pub to node2-pub.



[root@node2-pub ~]# cat /etc/rc.local



The below is the sample output of my /etc/rc.local



# Affirms the mappings of symlinks to storage devices. If a

# device cannot be found by its UUID, the existing symlink will

# be deleted. If the device name has changed, it will update the

# symlink. Both start and restart are synonyms for this command.



service iscsi restart

devlabel reload

mount -t ocfs2 -o datavolume,nointr /dev/ocfs2 /u02/ocfs2



Installing and Configuring OCFS2 (Oracle Cluster File System):



Because the OCR and Voting Disk are residing on the OCFS2 in the current setup, the OCFS2 needs to be installed and configured on the new node as well.

The OCFS2 setup guide was followed to install and configure the OCFS2.



Installing OCFS2 RPMs (same as node1-pub):



         ocfs2-2.6.9-55.0.2.EL-1.2.5-6.i686.rpm

         ocfs2-tools-1.2.4-1.i386.rpm

         ocfs2-tools-debuginfo-1.2.4-1.i386.rpm

         ocfs2-tools-devel-1.2.4-1.i386.rpm



[root@node2-pub rpms]# rpm -ivh ocfs2-2.6.9-55.0.2.EL-1.2.5-6.i686.rpm \

> ocfs2-tools-1.2.4-1.i386.rpm \

> ocfs2console-1.2.4-1.i386.rpm \

> ocfs2-tools-debuginfo-1.2.4-1.i386.rpm \

> ocfs2-tools-devel-1.2.4-1.i386.rpm

Preparing... ########################################### [100%]

1:ocfs2-tools ########################################### [ 20%]

2:ocfs2-2.6.9-55.0.2.EL ########################################### [ 40%]

3:ocfs2console ########################################### [ 60%]

4:ocfs2-tools-debuginfo ########################################### [ 80%]

5:ocfs2-tools-devel ########################################### [100%]



Configuring OCFS2:



Running ocfs2console command line utility brings up this screen.

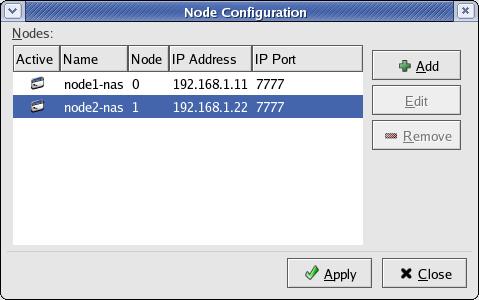

Click Cluster --> Configure Nodes. Add node names for node2-pub here.

Make sure to add exact same node name as it has been returned by the `hostname` command. The hostname for the new node is node2-pub.hingu.net.

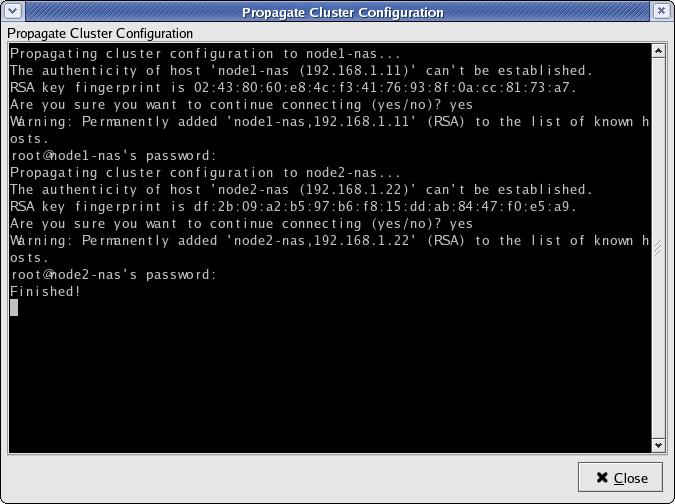

Propagate these changes to all the nodes in the cluster as shown below.








The above settings of "Name" (node2-nas) in the ocfs2 configuration caused the below error try to enable o2cb service.



[root@node2-pub rpms]# /etc/init.d/o2cb enable

Writing O2CB configuration: OK

Starting O2CB cluster ocfs2: Failed

Cluster ocfs2 created

Node node1-nas added

Node node2-nas added

o2cb_ctl: Configuration error discovered while populating cluster ocfs2. None of its nodes were considered local. A node is considered local when its node name in the configuration matches this machine's host name.

Stopping O2CB cluster ocfs2: OK



Stop o2cb service, open the /etc/ocfs2/cluster.conf file and update the hostname value to the one that is returned by `hostname` command. Then, start the service and load it again and this time error should go away.



/etc/ocfs2/cluster.conf:



node:

ip_port = 7777

ip_address = 192.168.0.11

number = 0

name = node1-pub.hingu.net

cluster = ocfs2

node:

ip_port = 7777

ip_address = 192.168.0.22

number = 1

name = node2-pub.hingu.net

cluster = ocfs2

cluster:

node_count = 2

name = ocfs2



Load the o2cb and Start configuring OCFS2.



/etc/init.d/o2cb load

/etc/init.d/o2cb status

/etc/init.d/o2cb configure

chkconfig --add ocfs2

chkconfig --add o2cb

mkdir -p /u02/ocfs2



[root@node2-pub rpms]# /etc/init.d/o2cb configure

Configuring the O2CB driver.

This will configure the on-boot properties of the O2CB driver.

The following questions will determine whether the driver is loaded on

boot. The current values will be shown in brackets ('[]'). Hitting

<ENTER> without typing an answer will keep that current value. Ctrl-C

will abort.

Load O2CB driver on boot (y/n) [n]: y

Cluster to start on boot (Enter "none" to clear) [ocfs2]:

Specify heartbeat dead threshold (>=7) [7]:

Specify network idle timeout in ms (>=5000) [10000]:

Specify network keepalive delay in ms (>=1000) [5000]:

Specify network reconnect delay in ms (>=2000) [2000]:

Writing O2CB configuration: OK

Starting O2CB cluster ocfs2: OK



Mount the filesystem:



mount -t ocfs2 -o datavolume,nointr /dev/ocfs2 /u02/ocfs2



The below error may be seen at this point.



mount.ocfs2: Transport endpoint is not connected while mounting /dev/sda1 on /u02/ocfs2. Check 'dmesg' for more information on this error.

The possible solution is to disable the SELinux and Firewall on the new node (which has already been disabled above)



Update the /etc/fstab:



# This file is edited by fstab-sync - see 'man fstab-sync' for details

/dev/VolGroup00/LogVol00 / ext3 defaults 1 1

LABEL=/boot /boot ext3 defaults 1 2

none /dev/pts devpts gid=5,mode=620 0 0

none /dev/shm tmpfs defaults 0 0

none /proc proc defaults 0 0

none /sys sysfs defaults 0 0

/dev/VolGroup00/LogVol01 swap swap defaults 0 0



## OCFS2 mountpoint



/dev/ocfs2 /u02/ocfs2 ocfs2 _netdev,datavolume,nointr 0 0

/dev/hdc /media/cdrom auto pamconsole,exec,noauto,managed 0 0

/dev/fd0 /media/floppy auto pamconsole,exec,noauto,managed 0 0



Creating Automatic Storage Management (ASM) Disks for the Clustered Database:



Installing ASM RPMs on new node (same as node1-pub):



oracleasm-2.6.9-55.0.2.EL-2.0.3-1.i686.rpm

oracleasmlib-2.0.2-1.i386.rpm

oracleasm-support-2.0.3-1.i386.rpm



root@node2-pub rpms]# rpm -ivh oracleasm-2.6.9-55.0.2.EL-2.0.3-1.i686.rpm \

> oracleasmlib-2.0.2-1.i386.rpm \

> oracleasm-support-2.0.3-1.i386.rpm

Preparing... ########################################### [100%]

1:oracleasm-support ########################################### [ 33%]

2:oracleasm-2.6.9-55.0.2.########################################### [ 67%]

3:oracleasmlib ########################################### [100%]

[root@node2-pub rpms]#



Configuring ASM on new node (same as node1-pub):



[root@node2-pub ~]# /etc/init.d/oracleasm configure

Configuring the Oracle ASM library driver.

This will configure the on-boot properties of the Oracle ASM library

driver. The following questions will determine whether the driver is

loaded on boot and what permissions it will have. The current values

will be shown in brackets ('[]'). Hitting <ENTER> without typing an

answer will keep that current value. Ctrl-C will abort.

Default user to own the driver interface []: oracle

Default group to own the driver interface []: dba

Start Oracle ASM library driver on boot (y/n) [n]: y

Fix permissions of Oracle ASM disks on boot (y/n) [y]:

Writing Oracle ASM library driver configuration: [ OK ]

Creating /dev/oracleasm mount point: [ OK ]

Loading module "oracleasm": [ OK ]

Mounting ASMlib driver filesystem: [ OK ]

Scanning system for ASM disks: [ OK ]

[root@node1-pub ~]#



Scan the ASM Disk Device(s) that are currently being used by ASM by existing node:



[root@node2-pub ~]# /etc/init.d/oracleasm scandisks

Scanning system for ASM disks: [ OK ]

[root@node2-pub ~]# /etc/init.d/oracleasm listdisks

DSK1

DSK2

DSK3

DSK4

[root@node2-pub ~]#

[root@node2-pub ~]# /etc/init.d/oracleasm status

Checking if ASM is loaded: [ OK ]

Checking if /dev/oracleasm is mounted: [ OK ]



Install the CRS on the New Node (node2-pub):

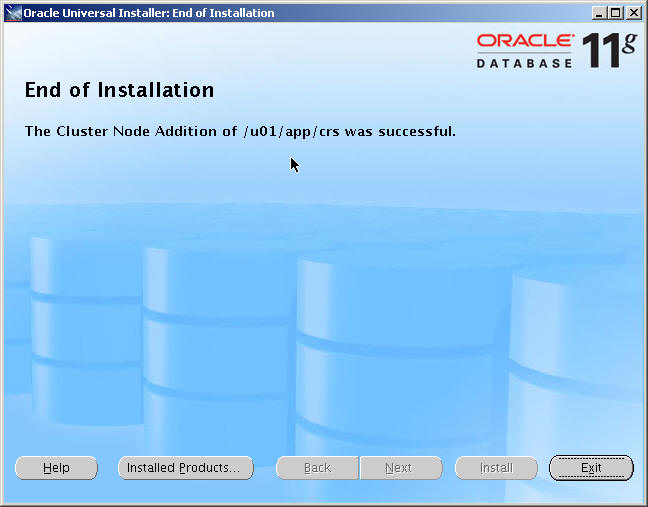

Start the X terminal and Connect to an existing Node as oracle user (node1-pub) and execute $CRS_HOME/oui/bin/addNode.sh script.

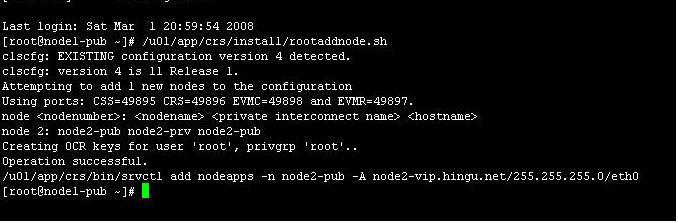

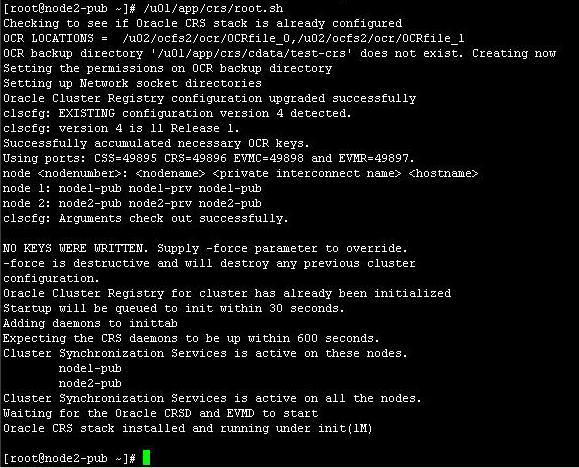

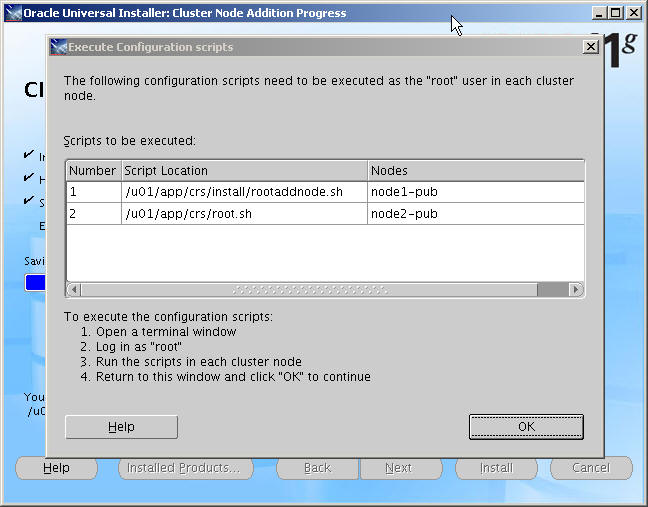

Run the mentioned script as root on the specified nodes.















Verify the CRS as well as nodeapps status on the new node node2-pub by running crsctl check cluster followed by crs_stat -t command.



Install ASM_HOME on the New Node node2-pub:





<<HOME>>

HTML Comment Box is loading comments...
